Coding/Coursera

[Andrew Ng] Neural Network and Deep Learning : 2. Basics of Neural Network Programming (2)

폴밴 2021. 10. 8. 10:31

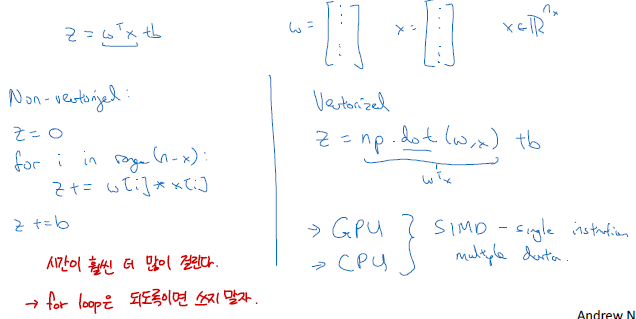

Vectorization

벡터화를 통해 for-loops을 줄여 컴퓨터가 계산을 효율적으로 할 수 있게 할 수 있다.

More vectorization examples

Whenever possible, avoid explicit for-loops.

u = Av
\
u_i=\sum_i\sum_j A_{ij}v_j

  • non-vectorized
u = np.zeros((n,1))
for i ...
    for j ...
        u[i] += A[i][j] * v[j]
  • vectorized
u = np.dot(A,v)

Vectors and matrix valued functions

ex. 모든 matrix elements에 exponential operation을 해야할 때

  • non-vectorized
u = np.zeros((n,1))
for i in range(n):
    u[i] = math.exp(v[i])
  • vectorized
import numpy as np
u = np.exp(v)

np.log(v)
np.abs(v)
np.maximum(v,0)
v**2

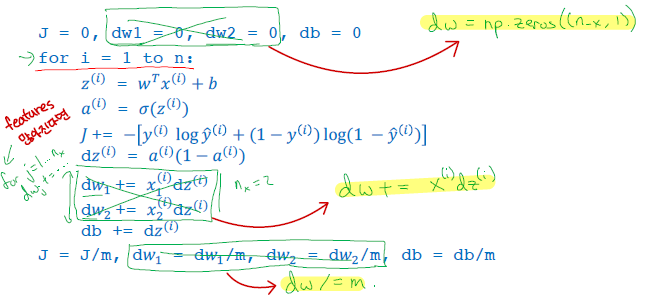

Logistic regression derivatives

  • dwnx에 대해 각각 지정하는 대신, 벡터화로 하나의 변수로 나타낼 수 있다.dw+=x(i)dz(i)
  • dw:=dw/m
  • dw=np.zeros((nx,1))

Vectorizing Logistic Regression

z(i)=wTx(i)+b

a(i)=σ(z(i))

X=[X^{(1)} \ X^{(2)} \ ... \ X^{(m)}]
\Z=[z^{(1)} \ z^{(2)} \ ... \ z^{(m)}]=w^TX+[b \ b\ b... \ b]
\
A=[a^{(1)},a^{(2)},...,a^{(m)}]=\sigma(z)

  • matrix Z는 파이썬에서 .dot (행렬 곱)을 통해 구할 수 있다.
z = np.dot(wT,X) + b

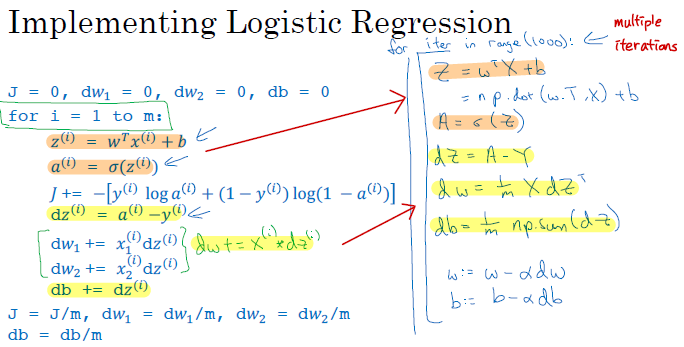

Vectorizing Logistic Regression's Gradient Computation

Vectorizing Logistic Regression

dz=[dz^{(1)} \ dz^{(2)} \ ... \ dz^{(m)}]
=A-Y
\=[a^{(1)}-y^{(1)} \ a^{(2)}-y^{(2)} \ ... \ a^{(m)}-y^{(m)}]

db = \frac 1 m \ np.sum(dz)
\
dw = \frac 1 m Xdz

dz,dw,db 를 for-loop 없이 벡터화로 계산할 수 있다.

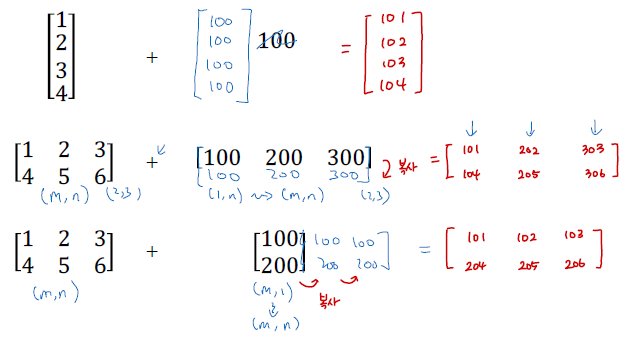

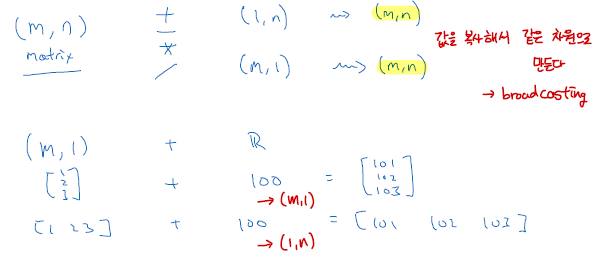

Broadcasting in Python

  • python에서 (m,n) matrix에 (1,n) or (m,1) matrix를 연산하면 값이 자동으로 복사되어 같은 차원으로 만들어 연산된다.

a = np.random.randn(5,1) # a.shape = (5,1) -> column vector
a = np.random.randn(1,5) # a.shape = (1,5) -> row vector

Source

Neural Networks and Deep Learning



신경망 및 딥 러닝

deeplearning.ai에서 제공합니다. In the first course of the Deep Learning Specialization, you will study the foundational concept of neural networks and ... 무료로 등록하십시오.

www.coursera.org
